Reconstruction from Samples

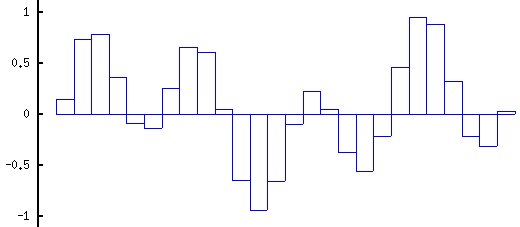

To reconstruct an analogue signal from the sampled signal we hold the snapshot value for the duration of the sample time :


Once we have a step waveform like this, an analogue filter is used to remove the steps.

A device which reconstructs an analogue signal from a digital one is called a Analogue to Digital Converter , ADC or A/D .
