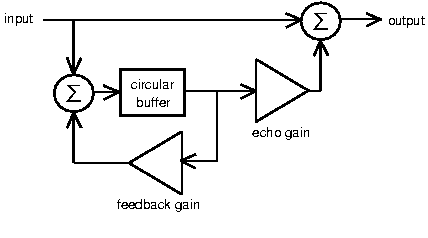

The basic block diagram for most of the time delay based effects looks like this :


The things that change for the various effects are the length of the time delay, the amount of the delayed signal fed back to the input of the circular buffer and the whether or not the delay length is modulated.
